Extensions - CORBA Connectors

Configure CORBA connections for enterprise system integration

Last updated: October 27, 20256 min read

Overview

CORBA (Common Object Request Broker Architecture) is a distributed object standard that allows applications to communicate across different platforms and programming languages. ColdFusion's CORBA support enables integration with enterprise systems and legacy applications that expose CORBA interfaces.

Legacy Technology: CORBA is a legacy technology primarily used for maintaining integration with older enterprise systems. For new projects, consider modern alternatives like REST APIs, gRPC, or message queues. CORBA support may be deprecated in future ColdFusion versions.

Understanding CORBA in ColdFusion

CORBA enables ColdFusion to interact with distributed objects written in different languages.

What is CORBA?

PurposePlatform-independent distributed object system
ArchitectureORB (Object Request Broker) mediates communication between objects
Interface DefinitionIDL (Interface Definition Language) defines object interfaces
Use CasesLegacy enterprise integration, mainframe connectivity, multi-language systems
Common Scenarios:
  • Connecting to legacy Java EE application servers
  • Integration with mainframe transaction systems
  • Accessing CORBA services in financial or telecom systems
  • Enterprise service bus (ESB) integration

Modern Alternatives

Consider These Instead:
  • REST APIs: HTTP-based, simple, widely adopted
  • GraphQL: Flexible data querying for modern applications
  • gRPC: High-performance RPC framework with Protocol Buffers
  • Message Queues: RabbitMQ, Apache Kafka for async communication
  • Web Services (SOAP): Still better than CORBA for most scenarios
  • Java Integration: Direct Java object access via JavaLoader

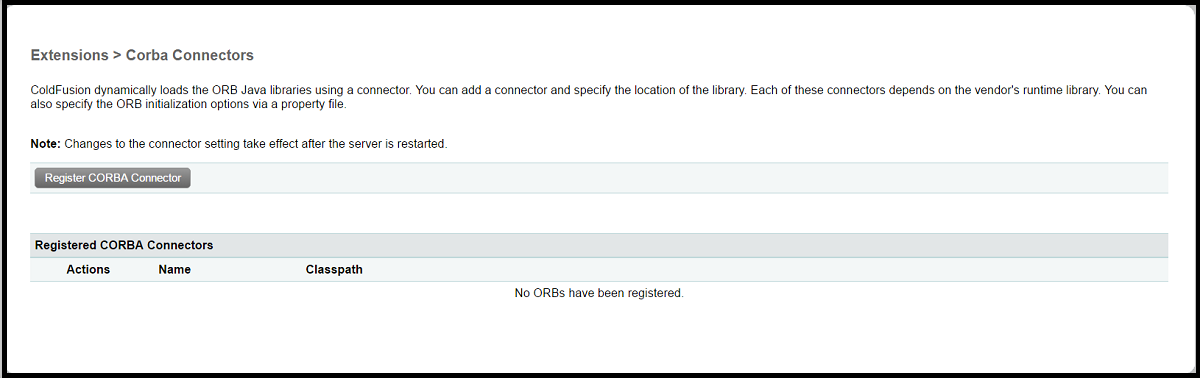

Configuring CORBA Connectors

Register ORB configurations to connect to CORBA services.

Connector Name

PurposeUnique identifier for the CORBA connector
FormatAlphanumeric string without spaces
ExampleMainframeORB, EnterpriseServices
Naming Convention: Use descriptive names that indicate the target system or service for better maintainability.

ORB Class Name

PurposeFully qualified Java class name of the ORB implementation
Defaultorg.omg.CORBA.ORB (Java built-in ORB)
Alternativescom.sun.corba.se.impl.orb.ORBImpl (Sun ORB)
com.inprise.vbroker.orb.ORB (Visibroker)
Note: The ORB class must be available in the ColdFusion classpath. For third-party ORB implementations, add the required JAR files to the ColdFusion lib directory.

ORB Property File

PurposePath to properties file containing ORB initialization parameters
FormatFull path to .properties file
Example/etc/coldfusion/orb/mainframe.properties
Property File Contents: The file should contain ORB-specific configuration parameters such as host, port, naming service location (IOR), timeout values, and security settings.

Classpath

PurposeAdditional JAR files or directories required by the ORB
FormatSemicolon-separated (Windows) or colon-separated (Unix) paths
Example/opt/orb/visibroker.jar:/opt/orb/idl.jar
Important: ColdFusion must be restarted after modifying classpath settings for changes to take effect.

Using CORBA Objects in CFML

Once a connector is configured, you can create and invoke CORBA objects in your ColdFusion code:

CORBA Object Usage
<!--- Create CORBA object reference --->
<cfobject
  type="corba"
  context="IOR"
  name="corbaService"
  class="path.to.ServiceInterface"
  locale="MainframeORB">

<!--- Invoke method on CORBA object --->
<cfset result = corbaService.processTransaction(
  accountId = "12345",
  amount = 100.00
)>

<cfoutput>#result#</cfoutput>
<!--- Safe CORBA invocation with error handling --->
<cftry>
  <!--- Create CORBA object --->
  <cfobject
    type="corba"
    context="IOR"
    name="corbaService"
    class="com.enterprise.TransactionService"
    locale="MainframeORB">

  <!--- Invoke remote method --->
  <cfset result = corbaService.getCustomerData(
    customerId = session.customerId
  )>

  <!--- Process result --->
  <cfif structKeyExists(result, "data")>
    <cfset customerData = result.data>
  </cfif>

  <cfcatch type="any">
    <cflog
      file="corba-errors"
      type="error"
      text="CORBA error: #cfcatch.message# | Detail: #cfcatch.detail#">

    <!--- Fallback behavior --->
    <cfset showErrorMessage("Unable to retrieve customer data")>
  </cfcatch>
</cftry>
<!--- Connect via CORBA naming service --->
<cfobject
  type="corba"
  context="NameService"
  name="corbaService"
  class="TransactionService"
  locale="MainframeORB">

<!--- Alternative: Use IOR string directly --->
<cfset iorString = "IOR:000000000000002849444C...">

<cfobject
  type="corba"
  context="IOR"
  name="corbaService"
  class="#iorString#"
  locale="MainframeORB">

ORB Property File Configuration

Example CORBA ORB properties file configuration:

orb.properties Example
# Basic ORB Configuration
org.omg.CORBA.ORBClass=org.omg.CORBA.ORB
org.omg.CORBA.ORBSingletonClass=org.omg.CORBA.ORBSingleton

# Naming Service Configuration
org.omg.CORBA.ORBInitialHost=mainframe.company.com
org.omg.CORBA.ORBInitialPort=1050

# Connection Timeouts
com.sun.corba.se.client.ORBConnectTimeout=10000
com.sun.corba.se.client.ORBReadTimeout=30000
# Visibroker ORB Configuration
org.omg.CORBA.ORBClass=com.inprise.vbroker.orb.ORB
org.omg.CORBA.ORBSingletonClass=com.inprise.vbroker.orb.ORBSingleton

# Naming Service
vbroker.orb.bootstrap=mainframe.company.com:1050

# Connection Pool
vbroker.orb.connectionMax=50
vbroker.orb.connectionIdle=300

# Security
vbroker.security.enable=true
vbroker.security.principal=cfservice
vbroker.security.credentials=/etc/corba/keystore.jks

Best Practices

Connection Management

Best Practices:
  • Object Pooling: Reuse CORBA object references when possible
  • Timeouts: Configure appropriate connection and read timeouts
  • Error Handling: Always wrap CORBA calls in try/catch blocks
  • Logging: Log all CORBA errors for troubleshooting
  • Health Checks: Implement health check endpoints to verify CORBA connectivity

Performance Optimization

Tips:
  • Minimize Calls: CORBA calls have network overhead - batch operations when possible
  • Cache Results: Cache CORBA response data to reduce repeated calls
  • Async Processing: Use ColdFusion threads for non-blocking CORBA operations
  • Connection Pooling: Configure ORB connection pooling for better performance
  • Monitor Latency: Track CORBA call timing to identify slow operations

Security Considerations

Security:
  • Authentication: Use CORBA security services when available
  • Encryption: Enable SSL/TLS for CORBA communication if supported
  • Credentials: Store credentials securely, never in code
  • Firewall Rules: Restrict CORBA ports to trusted networks
  • Input Validation: Validate all data sent to CORBA services

Common Issues & Solutions

ORB Initialization Failed

Symptom: Error initializing ORB or creating CORBA object
Solutions:
  • Verify ORB class name is correct and class is in classpath
  • Check ORB property file path and file permissions
  • Ensure required JAR files are in ColdFusion classpath
  • Restart ColdFusion after adding/modifying classpath
  • Review ColdFusion logs for detailed error messages

Cannot Connect to CORBA Service

Symptom: Connection timeout or "object not found" errors
Solutions:
  • Verify naming service host and port are correct
  • Test network connectivity to CORBA server (ping, telnet)
  • Check firewall rules allow CORBA port communication
  • Verify IOR string is current and valid (IORs can expire)
  • Confirm CORBA service is running and accessible
  • Review CORBA server logs for connection attempts

Method Invocation Errors

Symptom: Errors when calling methods on CORBA objects
Solutions:
  • Verify method signature matches IDL definition exactly
  • Check data type mapping between CFML and CORBA IDL types
  • Ensure required parameters are provided
  • Review CORBA service logs for server-side errors
  • Test with minimal parameters to isolate data type issues
  • Verify object reference is still valid (not expired)

Performance Issues

Symptom: Slow CORBA calls, timeouts under load
Solutions:
  • Increase connection and read timeout values
  • Enable ORB connection pooling
  • Monitor network latency between ColdFusion and CORBA service
  • Cache CORBA object references instead of recreating
  • Reduce data payload size if transferring large objects
  • Consider async processing for non-critical operations
