Server Settings - Charting

Configure charting engine settings

Overview

The Charting Settings page configures ColdFusion's chart generation engine for creating data visualizations and graphs. ColdFusion provides powerful charting capabilities for creating bar charts, line charts, pie charts, and many other visualization types with extensive customization options.

Proper chart configuration ensures optimal performance, consistent styling, and efficient resource usage when generating charts dynamically for web applications and reports.

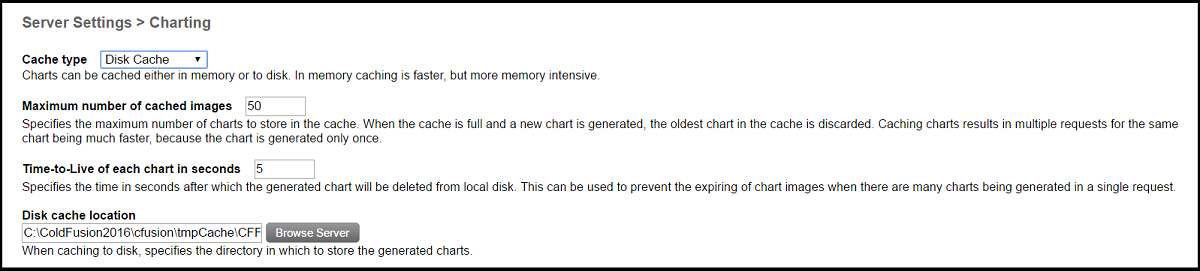

Chart Configuration Settings

The Charting page has four settings: Cache Type, Maximum Number Of Cached Images, Max Number Of Charting Threads, and Disk Cache Location. (Source: Adobe: Charting page)

Cache Type

PurposeWhere generated charts are cached
OptionsMemory, Disk
Trade-offMemory caching is faster, but more memory intensive

Maximum Number Of Cached Images

PurposeMaximum number of charts to store in the cache. When the cache is full and a new chart is generated, ColdFusion discards the oldest chart
RecommendationSet based on how many distinct charts your application generates
Maximum250 (Source: Adobe: Administering charts)

Max Number of Charting Threads

PurposeMaximum number of chart requests that can be processed concurrently
Range1 to 5
Tuning Guide: Higher numbers are more memory-intensive. Monitor server resources under load to find the right value.

Disk Cache Location

PurposeThe location where charts are saved when caching to disk. Adobe notes that in the 2016 and 2018 releases this location cannot be changed
Best Practice: Ensure the directory has sufficient disk space and proper write permissions for the ColdFusion service account.

Chart Defaults Set in Code

The Administrator has no default font, size, or format settings. Set these per chart with cfchart attributes:

  • format: html, png, jpg, or svg. The flash format was removed and svg was added in ColdFusion 2025.
  • chartwidth / chartheight: 320 x 240 pixels by default
  • font, fontsize, fontbold, fontitalic: text styling for the chart

Supported Chart Types

Basic Charts

  • Bar Charts: Vertical and horizontal bar charts
  • Line Charts: Single and multi-line trend charts
  • Pie Charts: Standard and 3D pie charts
  • Area Charts: Filled area charts for trends
  • Scatter Charts: X-Y scatter plots

Advanced Charts

  • Combination Charts: Mixed chart types
  • Cone/Cylinder/Pyramid: 3D chart variations
  • Step Charts: Step-line visualizations
  • Curve Charts: Smooth curved lines
  • Bubble Charts: Three-dimensional data plots

Chart Features

  • Multiple data series support
  • Custom colors and styles
  • Grid lines and markers
  • Legends and labels
  • Tooltips and data point information
  • Background images and patterns

Using Charts in CFML

Basic Chart Creation

Create a simple bar chart:

Basic Bar Chart
cfchart(format="png", chartwidth=500, chartheight=400, title="Sales by Quarter") {
  cfchartseries(type="bar") {
    cfchartdata(item="Q1", value=45000);
    cfchartdata(item="Q2", value=52000);
    cfchartdata(item="Q3", value=48000);
    cfchartdata(item="Q4", value=61000);
  }
}
<cfchart format="png"
         chartwidth="500"
         chartheight="400"
         title="Sales by Quarter">
  <cfchartseries type="bar">
    <cfchartdata item="Q1" value="45000">
    <cfchartdata item="Q2" value="52000">
    <cfchartdata item="Q3" value="48000">
    <cfchartdata item="Q4" value="61000">
  </cfchartseries>
</cfchart>

Multiple Data Series

Create chart with multiple series:

Multi-Series Chart
cfchart(format="png", title="Sales Comparison") {
  cfchartseries(type="bar", seriesLabel="2023") {
    cfchartdata(item="Q1", value=45000);
    cfchartdata(item="Q2", value=52000);
  }
  cfchartseries(type="bar", seriesLabel="2024") {
    cfchartdata(item="Q1", value=48000);
    cfchartdata(item="Q2", value=55000);
  }
}
<cfchart format="png"
         title="Sales Comparison">
  <cfchartseries type="bar" seriesLabel="2023">
    <cfchartdata item="Q1" value="45000">
    <cfchartdata item="Q2" value="52000">
  </cfchartseries>
  <cfchartseries type="bar" seriesLabel="2024">
    <cfchartdata item="Q1" value="48000">
    <cfchartdata item="Q2" value="55000">
  </cfchartseries>
</cfchart>

Chart from Query

Generate chart from database query:

Chart from Database Query
salesData = queryExecute("
  SELECT month, revenue
  FROM sales
  WHERE year = :year
  ORDER BY month
", {year: 2024}, {datasource: "myDB"});

// Note: Use cfchart tag for chart generation
// Charts are typically rendered with tags
<cfquery name="salesData" datasource="myDB">
  SELECT month, revenue
  FROM sales
  WHERE year = 2024
  ORDER BY month
</cfquery>

<cfchart format="png">
  <cfchartseries type="line"
                 query="salesData"
                 itemColumn="month"
                 valueColumn="revenue">
  </cfchartseries>
</cfchart>

Saving Charts to Disk

Generate and save chart files:

Save Chart to File
// Note: Chart generation is typically done with tags
// After generating chart with name attribute, save it:
fileWrite(expandPath("/charts/sales-pie.png"), myChart);
<cfchart format="png"
         name="myChart">
  <cfchartseries type="pie">
    <cfchartdata item="Product A" value="35">
    <cfchartdata item="Product B" value="25">
    <cfchartdata item="Product C" value="40">
  </cfchartseries>
</cfchart>

<cffile action="write"
        file="#expandPath('/charts/sales-pie.png')#"
        output="#myChart#">

Chart Caching

Cache Benefits

  • Reduces server load for frequently requested charts
  • Improves response time for chart generation
  • Minimizes resource usage for identical charts
  • Enables serving charts without regeneration

Cache Types

Disk Cache

Description
Store charts as files on disk
Use Case
Production, large chart volumes

Slower than memory caching but uses less memory.

Memory Cache

Description
Store charts in server memory
Use Case
High performance, limited charts

Faster than disk caching but more memory intensive. Use when RAM is available.

Cache Management

  • Set appropriate cache size for chart volume

Chart Styling and Customization

Color Schemes

Apply custom colors to charts:

Custom Chart Colors
<cfchart format="png"
         foregroundColor="##333333"
         backgroundColor="##FFFFFF"
         dataBackgroundColor="##F5F5F5">
  <cfchartseries type="bar"
                 seriesColor="##3366CC">
    <!--- Chart data --->
  </cfchartseries>
</cfchart>

Fonts and Text

Customize chart typography:

Custom Chart Fonts
<cfchart format="png"
         font="Arial"
         fontSize="12"
         fontBold="yes"
         title="Quarterly Sales">
  <!--- Chart content --->
</cfchart>

Grid and Markers

  • Show/hide grid lines
  • Customize grid colors and styles
  • Add reference markers and lines
  • Configure axis labels and scales
  • Set minimum and maximum values

Best Practices

Performance

  • Size the chart cache for production traffic
  • Use disk cache for large chart volumes
  • Raise Max number of charting threads (1 to 5) for concurrent chart generation
  • Optimize chart data queries for performance
  • Limit chart size to reasonable dimensions
  • Use PNG format for best quality/size balance

Chart Design

  • Choose appropriate chart type for data
  • Keep charts simple and focused
  • Use clear, descriptive labels and titles
  • Limit number of data series per chart
  • Choose contrasting colors for clarity
  • Include legends for multi-series charts

Data Handling

  • Validate data before chart generation
  • Handle null or missing data appropriately
  • Format numbers and currency correctly
  • Sort data logically for time series
  • Aggregate data for readability
  • Use appropriate scale ranges

Production Configuration

  • Set adequate cache size for traffic volume
  • Set the charting thread count (1 to 5) based on server resources
  • Monitor chart generation performance
  • Implement error handling for chart failures
  • Test charts across different browsers
  • Document custom chart templates

Troubleshooting

Charts Not Displaying

If charts fail to appear:

  • Check chart cache directory exists and is writable
  • Verify ColdFusion has permissions to write files
  • Review browser console for JavaScript errors
  • Check chart format is supported by browser
  • Verify data is not empty or invalid
  • Review application.log for chart generation errors

Poor Chart Quality

If charts appear pixelated or blurry:

  • Increase chart width and height dimensions
  • Use PNG format instead of JPEG
  • Verify font rendering settings
  • Check image scaling in HTML/CSS
  • Ensure adequate resolution for display size

Slow Chart Generation

If charts take too long to generate:

  • Raise the Maximum Number Of Cached Images so repeated charts are served from cache
  • Optimize data queries
  • Reduce number of data points
  • Raise the charting thread count (maximum 5)
  • Check server resource usage
  • Consider pre-generating charts for reports

Font Issues in Charts

If chart text appears incorrect:

  • Verify specified fonts are installed on server
  • Register fonts in Font Management
  • Use standard web-safe fonts
  • Check font size settings
  • Test with different font families

Cache Not Working

If charts aren't being cached:

  • Check the cache type setting
  • Check cache directory permissions
  • Review the Maximum Number Of Cached Images setting (up to 250)
  • Check disk space availability

Advanced Charting

Custom Chart Styles

  • Create reusable chart style templates
  • Apply corporate branding to charts
  • Use JSON chart style files
  • Implement responsive chart sizing
  • Support dark mode chart themes

Dynamic Chart Updates

  • Refresh charts via AJAX
  • Implement real-time data updates
  • Use JavaScript charting libraries for interactivity
  • Enable drill-down capabilities
  • Add click handlers for data exploration

Chart Export Options

  • Export charts as PDF documents
  • Save charts in various image formats
  • Include charts in email reports
  • Generate charts for print layouts
  • Create chart galleries and dashboards
